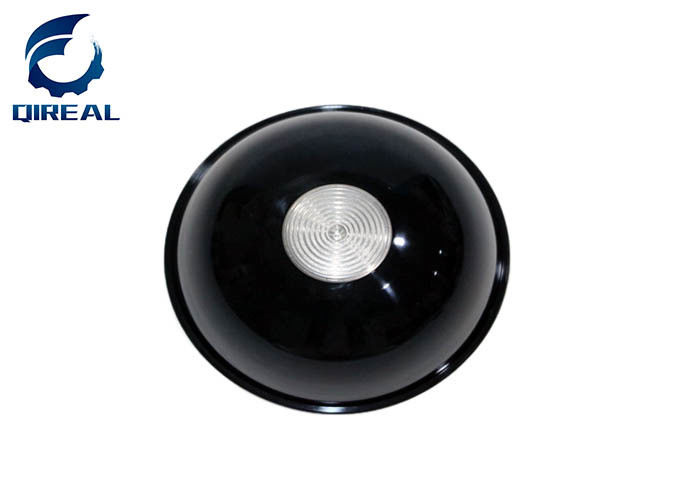

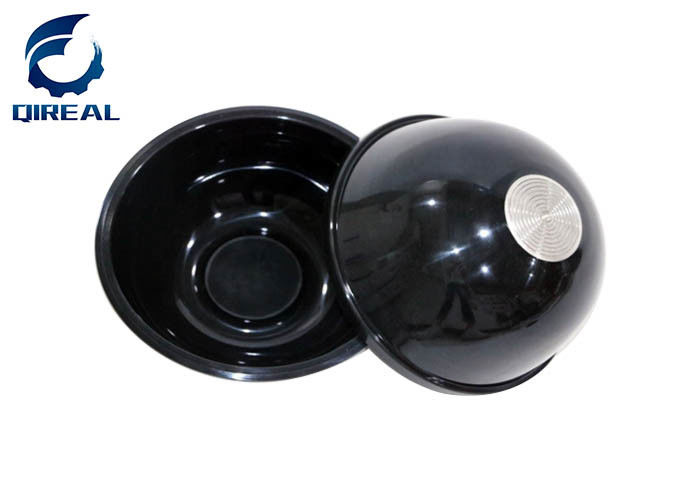

High Quality Standard UB-5 Rubber Diaphragm For Breaker Hammer
| Product | Diaphragm |
| Model | UB-5 |
| Material |
NBR / FKM |
| Feature | Resistance to oil, Abrasion, Solvent |
| Hardness | 70 - 90 shores A |
| Item | Rubber Diaphragm |
| Port of Loading | Huangpu, Guangzhou |
| Transport mode | By Air, Sea, Express , etc. |
| Payment terms |
Western Union, Cash, T/T , PayPal, etc |
We can also supply the following parts
The hydraulic breaker/hammer spare parts we supply are front head, cylinder,back head, chisel, piston,seal kits,diaphragm,front cover, thrush bush,ring bush,charging valve,accumulator,through bolt,side bolt, bracket, N2 charging device etc.
Excavator hammer lines/piping kits/auxiliary installation pipelines for attachment are available too.
High quality,competitive price and innovative products can be promised and stock samples can be available for your evaluation.
Hammer,Breaker,Rig,Hydraulic drill
Various models
| PART NAME | SIZE SPECIFIION | |
| DIAPHRAGM | F-6=F-3=FURUKAWA 300 | ø110 * 18 |
| DIAPHRAGM | HB-3G/5G | ø100 * 17 |
| DIAPHRAGM | HB-10G/F12 | ø140*40 |
| DIAPHRAGM | HB-15G | ø150 * 40 |
| DIAPHRAGM | HB-20G | ø170 * 35 |
| DIAPHRAGM | HB-30G | ø190 * 40 |
| DIAPHRAGM | HB-40G | ø210 * 48 |
| DIAPHRAGM | HB-200 | ø135 * 23 |
| DIAPHRAGM | HB-700 | ø165 * 23 |
| DIAPHRAGM | HB-1200 / 1500 | ø230 * 20 |
| DIAPHRAGM | SB-120/121/130 | ø192 * 40 |
| DIAPHRAGM | SB-150/SB-151 | ø205 * 37 |
| DIAPHRAGM | HM-110/HM-550 | ø112 * 16 |
| DIAPHRAGM | MKB-1300/HM-901 | ø140 * 60 |
| DIAPHRAGM | HM-600 / 800 / 901 | ø140 * 60 |
| DIAPHRAGM | HM960/HM-1300 | ø185 * 50 |
| DIAPHRAGM | HM-1500 / KRUPP-1000 / HM720 | ø170 * 20 |
| DIAPHRAGM | UB-11 / TOKU-14/TNB13 | ø144 * 65 |
| DIAPHRAGM | OUB 312 / UB-1600 | ø170 * 70 |
| DIAPHRAGM | OUB 316 / 318 / UB-2500/KTB2500 | ø200 * 90 |
| DIAPHRAGM | UB-5/TNB13A | ø138 * 68 |
| DIAPHRAGM | UB-11-2 | ø150 * 77 |
| DIAPHRAGM | RAMMER S-26 HIGH / D-50 | ø95 * 20 |
| DIAPHRAGM | RAMMER S-25 HIGH / D-50 | ø110*22 |
| DIAPHRAGM | RAMMER S-26 LOW / D-50 | ø193 * 30 |
| DIAPHRAGM | THBB-1400(7624-10-0230)/THBB800 | ø157 * 70 |
| DIAPHRAGM | THBB1600 | 168*80 |
| DIAPHRAGM | TOYO2000 | |
| DIAPHRAGM | FURUKAWA 300/HD-300,500 | ø110 * 18 |
| DIAPHRAGM | LM-500/YH-65/BRP130 | ø115 * 21 |
| DIAPHRAGM | YH-45=CDH700=YH-50=CDH712 | ø101 * 21 |
| DIAPHRAGM | TR210 | ø165*40 |
The Positions of Seal Kits
Q: Can I get the sample ?
A: .Yes. Pay sample, freight collect.
Q: When will you ship my order?
A: Within 2 working days after payment if in stock.
Q: How long can i receive the goods?
A: The normal delivery time is 3-9 days, depending on the transport mode
Q: How can i trace my order?
A: We will send the tracking number to you by e-mail or other contact details.
Q: Quality of the products have a guarantee?
A: Please be assured, all products we sell would go through strict testing at the factory prior.
Our products are sold all over the world, you can rest assured.
